Tesla Wall Connector
Now in its third generation, Tesla Wall Connector brings years of home charging experience to your driveway. Compatible with electric vehicles that use a Type 2 port, it’s ready when you plug in.
Charge your Tesla with excess solar using Powerwall
Compatible with EVs that use a Type 2 port
Up to 22 kW charging, depending on your vehicle and power supply
Charge your car with excess solar
With Powerwall and a compatible Tesla vehicle, Charge on Solar uses excess solar power to charge your car instead of sending it to the grid.
We can install your Wall Connector alongside your solar or battery system, so everything is ready in one visit.

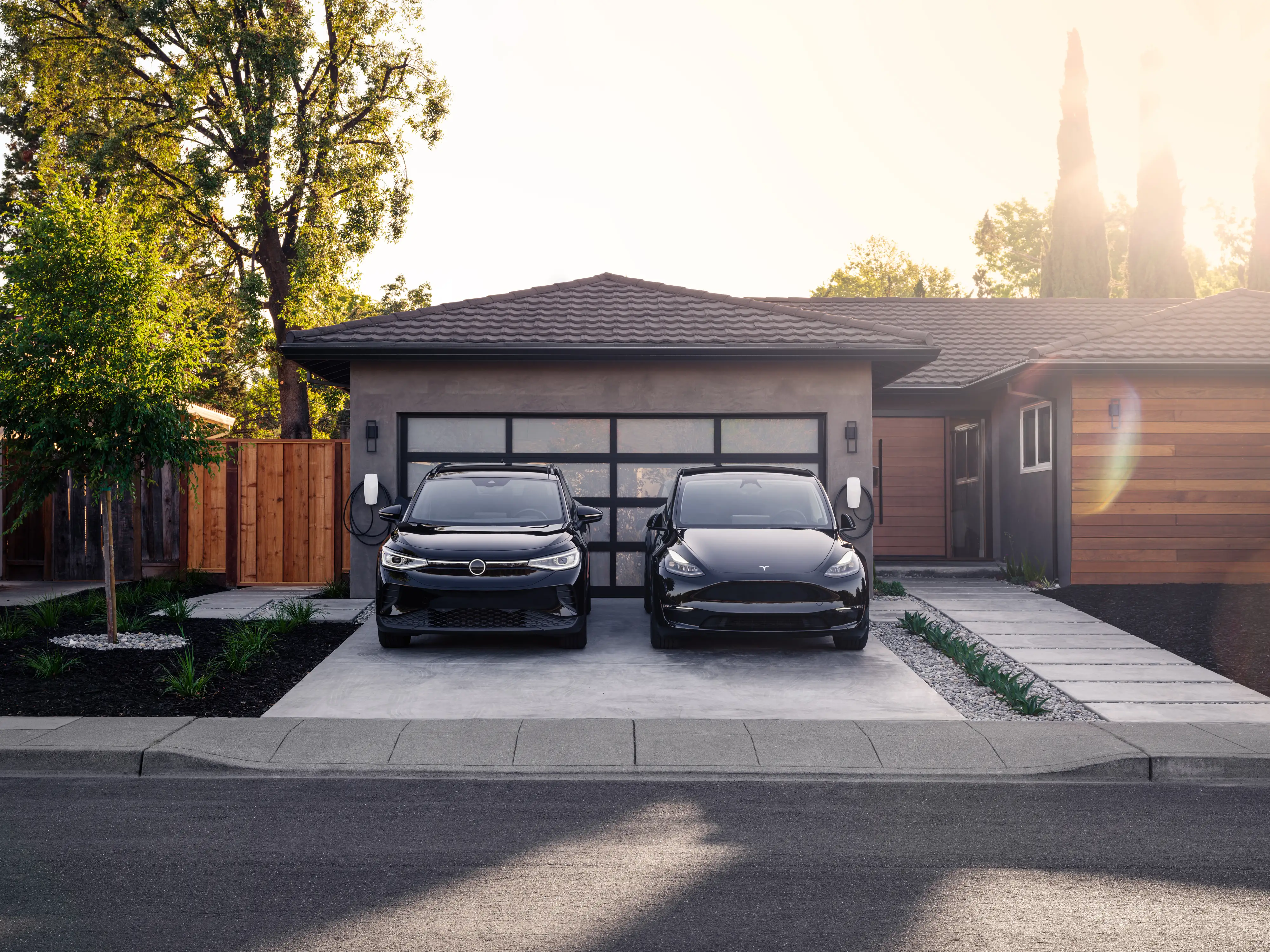

One charger for your EVs
Tesla Wall Connector works with electric vehicles that use a Type 2 charging port, including models from BYD, Kia, Polestar, Volvo and MG.
For Tesla drivers, the button on the charging handle also opens the car’s charge port.
Up to 22 kW, right where you park
Wall Connector delivers up to 22 kW on three phase power or 7.4 kW on single phase. We set the charging rate to suit your electrical supply, with actual speed depending on your vehicle.

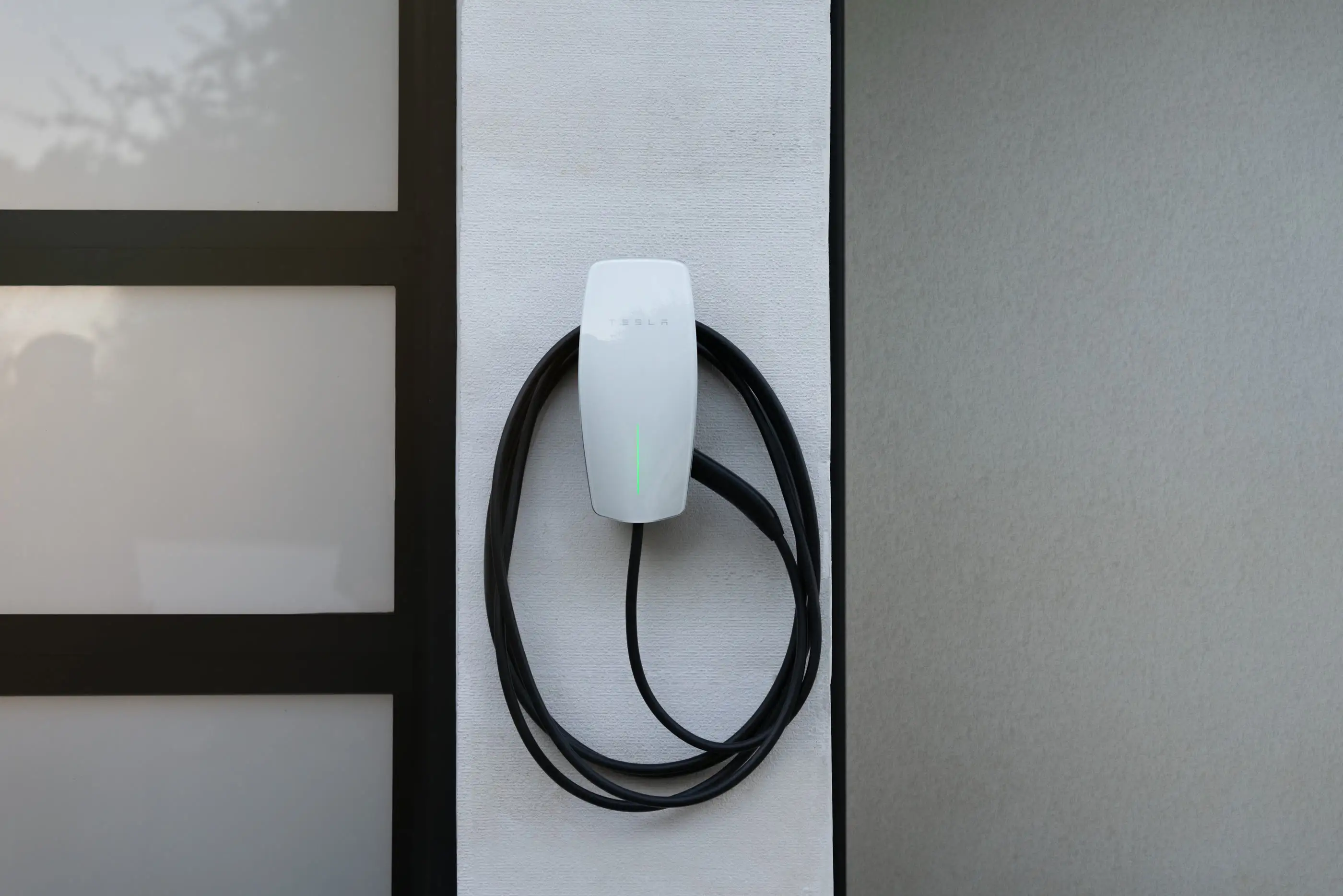

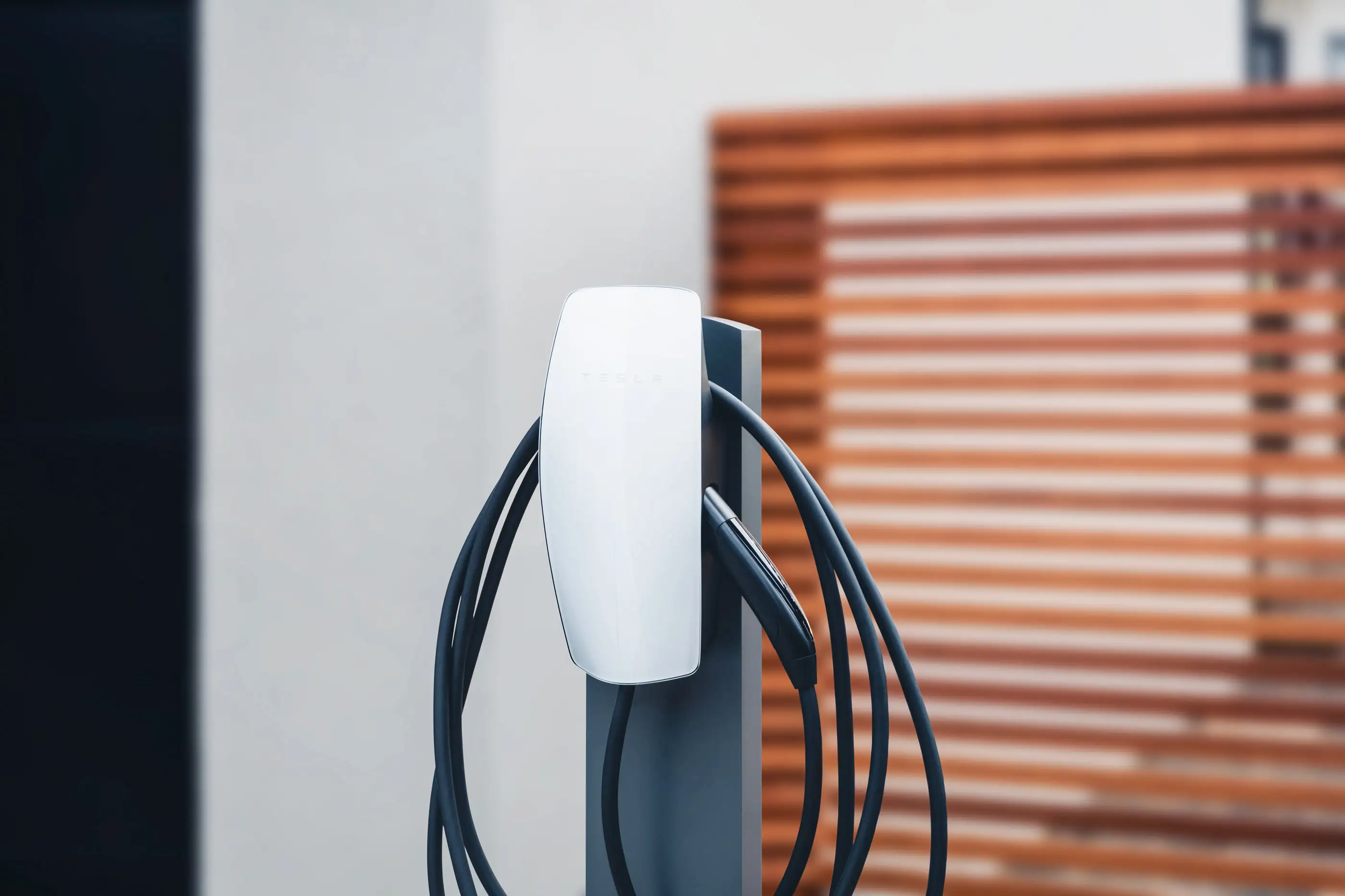

Install it indoors or outdoors, on a wall, post or pedestal. The 7.3 metre cable gives you flexibility to reach your car’s charging port.

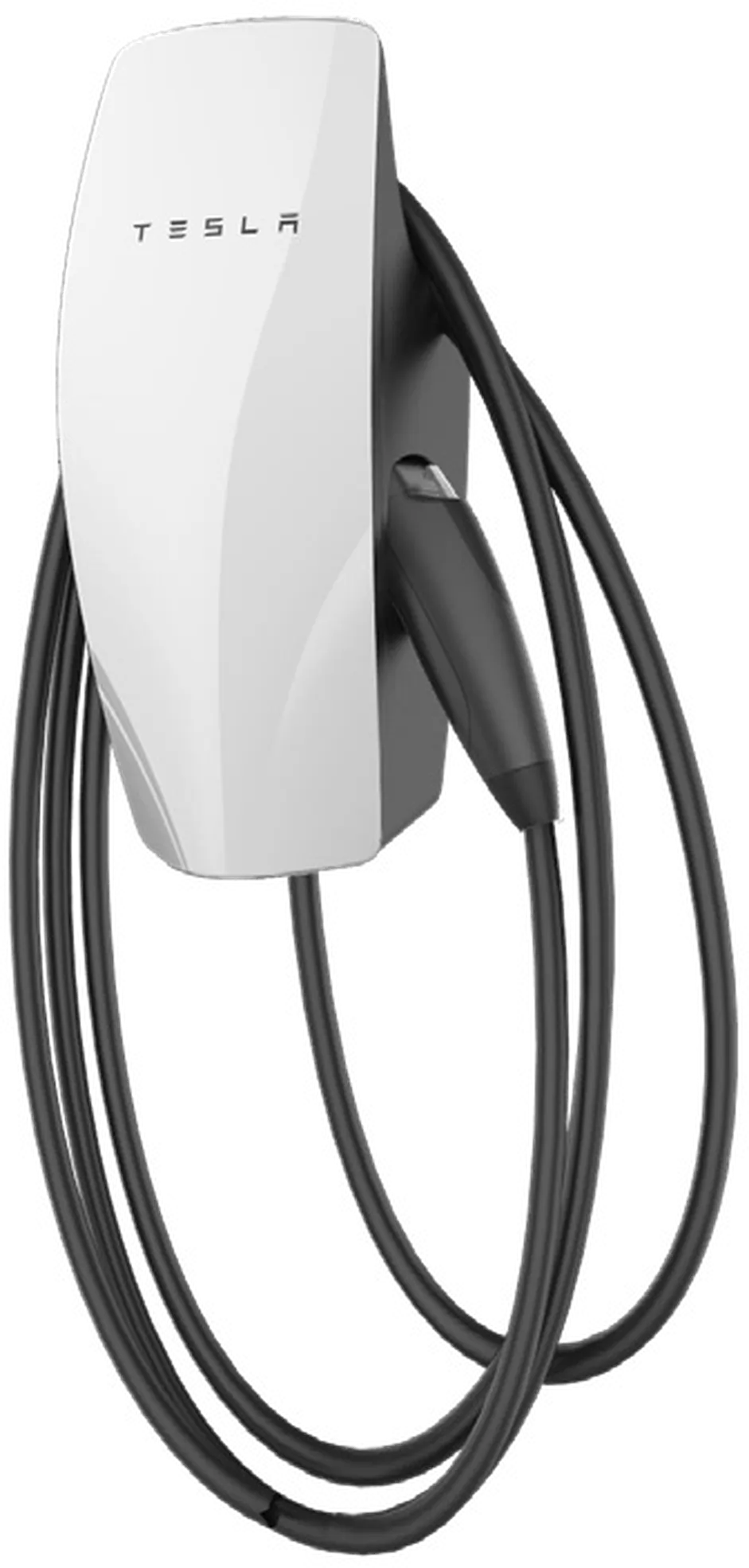

Tesla Wall Connector unit
A compact unit with a faceplate, wirebox and 7.3 metre charging cable. Measures 345 mm high, 155 mm wide and 110 mm deep, and weighs 6.8 kg.
Tesla Wall Connector
$770for the unit
We quote your installation after the site visit.
Get a QuoteWe supply and install it here in Canberra.
Tesla Owners Club member? We've got an offer for you.
Tesla Wall Connector specifications
Tesla Wall Connector comes with a Type 2 plug and a 7.3 metre charging cable. It delivers up to 22 kW on three phase power or 7.4 kW on single phase, with charging speed depending on your vehicle and electrical supply.
Designed for indoor or outdoor installation, it has an IP55 weather rating, IK08 impact protection and an operating range of −30°C to 50°C. Built in safety features include residual current detection, and up to six Wall Connectors can share available power.
| Property | Tesla Wall Connector |
|---|---|
| Connector | Type 2, tethered |
| Cable length | 7.3 m |
| Output, three phase, maximum | 22 kW at 32 A |
| Output, three phase, Tesla published | 11 kW at 16 A |
| Output, single phase | 7.4 kW at 32 A |
| Current range | 1–20 (32) A, set by the installer |
| Supply | 1-phase 230 V; 3-phase 400 V or 230 V |
| Residual current detection | Built in, Type A plus DC 6 mA |
| Enclosure rating | IP55 |
| Impact rating | IK08 |
| Operating temperature | −30°C to 50°C |
| Dimensions | 345 × 155 × 110 mm |
| Weight | 6.8 kg, wirebox included |
| Connectivity | Wi-Fi, 2.4 GHz, 802.11 b/g/n |
| Power sharing | Six units on one supply: one leader, five followers |
| Monitoring | Tesla app: schedule, usage, access |
| Warranty, residential | 48 months from the date of invoice |
