WINAICO Ultra Black solar panels
All black, glass on both sides, with a 30‑year product warranty
Why we fit WINAICO

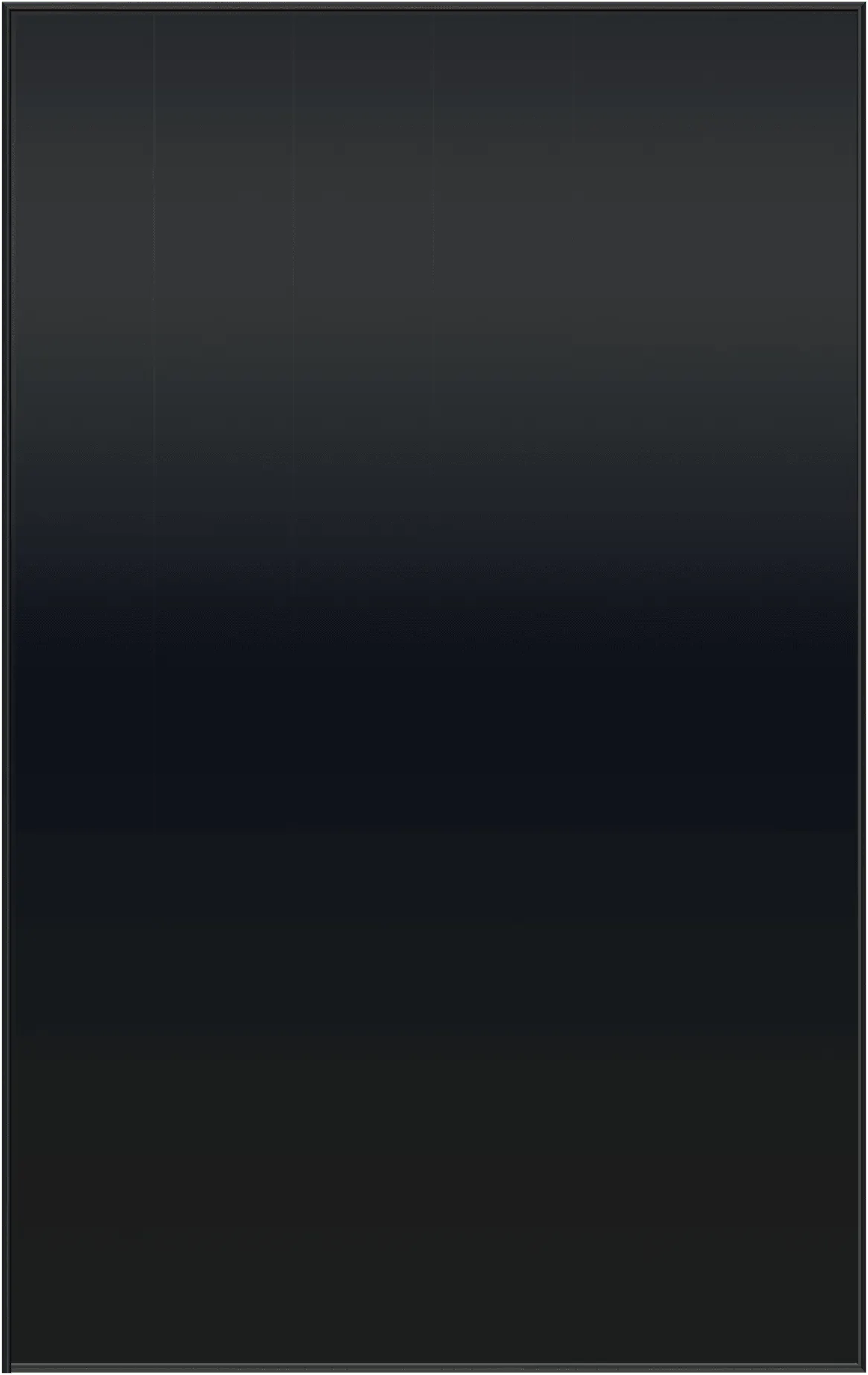

Black from edge to edge
WINAICO puts the wiring behind the cells, so your roof shows black glass in a black frame, with no silver lines across it.
Glass on both sides
Your panels have 2.0 mm glass on the back as well as the front, where most panels use a polymer sheet, a common point of failure.
30 years on every panel
WINAICO covers your panels for 30 years, double the 15 years a standard polymer-backed panel carries.What back contact means for your roof
On most panels, thin silver lines run across the front of every cell to carry the power. WINAICO moves those connections to the back. Your panels look solid black from the street, and more of each cell is open to the sun.
Up to 20% more power from the back
Your panels also turn light that reaches their glass back into power. Depending on your roof and how they're mounted, each panel can make up to 20% more from its rear, or up to 100 W.
Your output, guaranteed for 30 years
Your panels can lose no more than 1% of their output in the first year and 0.35% a year after that. In year 30, WINAICO guarantees at least 88.85% of their rated power.
More power from less roof
Each panel is rated at 500 W and 24.5% efficiency, so we can fit the system your home needs on a roof that is short on space.
Designed around your roof
We measure your roof on site, design your system around it, and show you the layout before you decide.
WINAICO Ultra Black specifications
The WINAICO WST-500BKX54-B3 is rated at 500 W and 24.5% module efficiency, and can make up to 20% more from its rear, depending on conditions. Each panel measures 1,800 × 1,134 × 35 mm and weighs 25 kg, with 2.0 mm glass on the front and the back and a black anodised aluminium frame. WINAICO covers the product for 30 years and its performance for 30 years.
| Property | WINAICO WST-500BKX54-B3 |
|---|---|
| Power | 500 W |
| Module efficiency | 24.5% |
| Power from the rear | Up to 20% more, 600 W in total, depending on conditions |
| Cell type | N-type monocrystalline, back contact, bifacial |
| Cells | 108 |
| Product warranty | 30 years |
| Performance warranty | 30 years, at least 88.85% of rated power in the final year |
| Output loss | No more than 1% in the first year, then 0.35% a year |
| Insurance | 2 years, complimentary from WINAICO |
| Temperature coefficient | −0.26% per °C |
| Glass | 2.0 mm on the front and the back, no polymer backsheet |
| Frame | Black anodised aluminium |
| Dimensions | 1,800 × 1,134 × 35 mm |
| Weight | 25 kg |
| Operating range | −40°C to 85°C |
| Test load | 5,400 Pa push, 2,400 Pa pull |
| Junction box | IP68 |
| Fire safety | Class C, IEC 61730 |
| Certification | IEC 61215:2021, IEC 61730:2023 |
