GoodWe ESA Series

The ESA Series is an all-in-one solar and battery system. The inverter sits in the top module and your battery modules stack underneath it. You can start at the size your home needs today, and add more when that changes.

Get a Quote

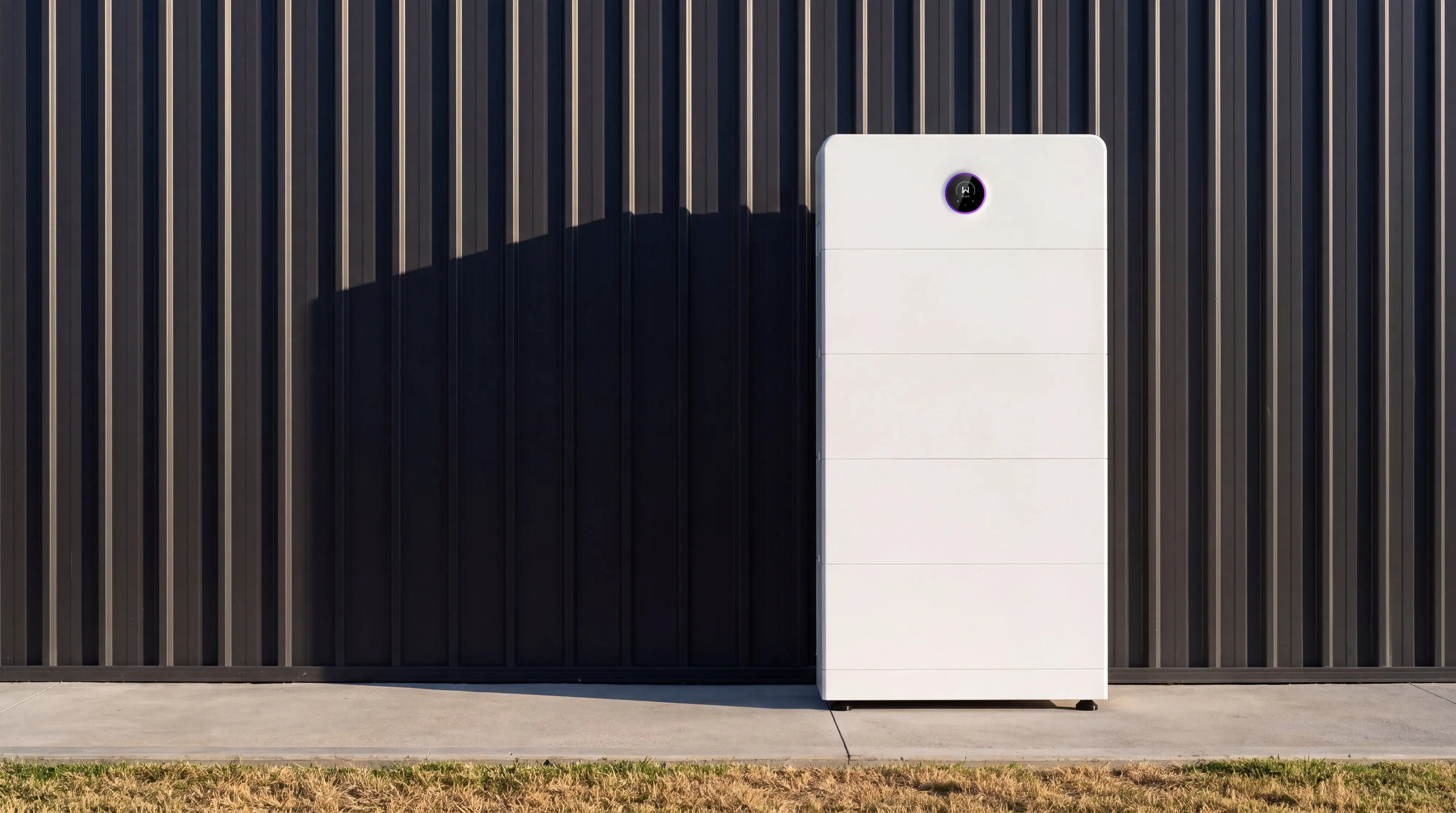

A white GoodWe battery, an inverter head over four battery modules on feet, standing on a concrete pad against a ribbed charcoal steel wall in afternoon sun, with dry grass along the bottom

Why we fit the ESA

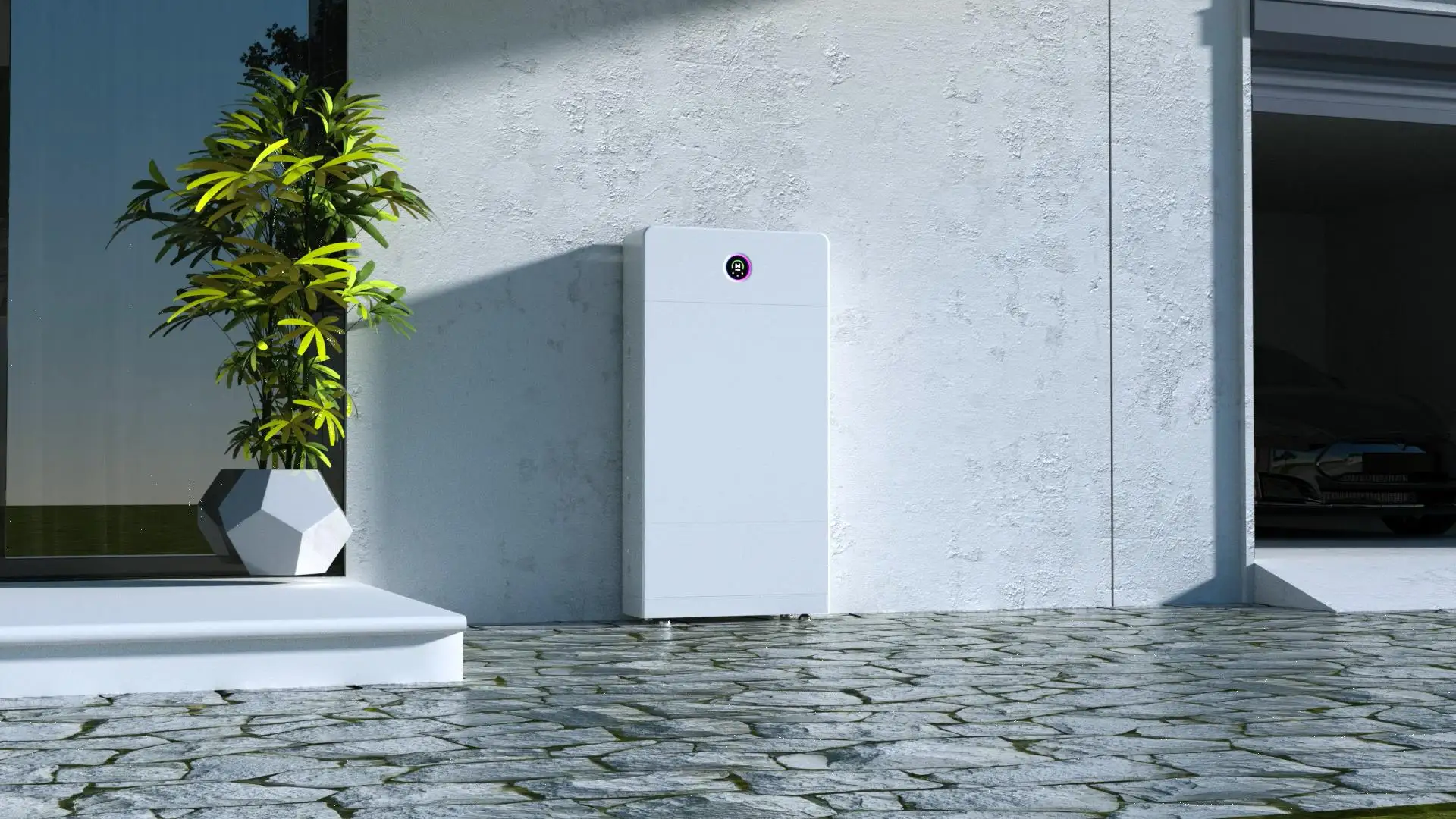

A white GoodWe battery, an inverter head over three battery modules on feet, standing against the white rendered wall of a house beside a potted palm, with a flagstone driveway and an open garage behind it — Arrives as one stack
Inverter, battery and backup switching come pre-wired, so one unit goes on your wall.

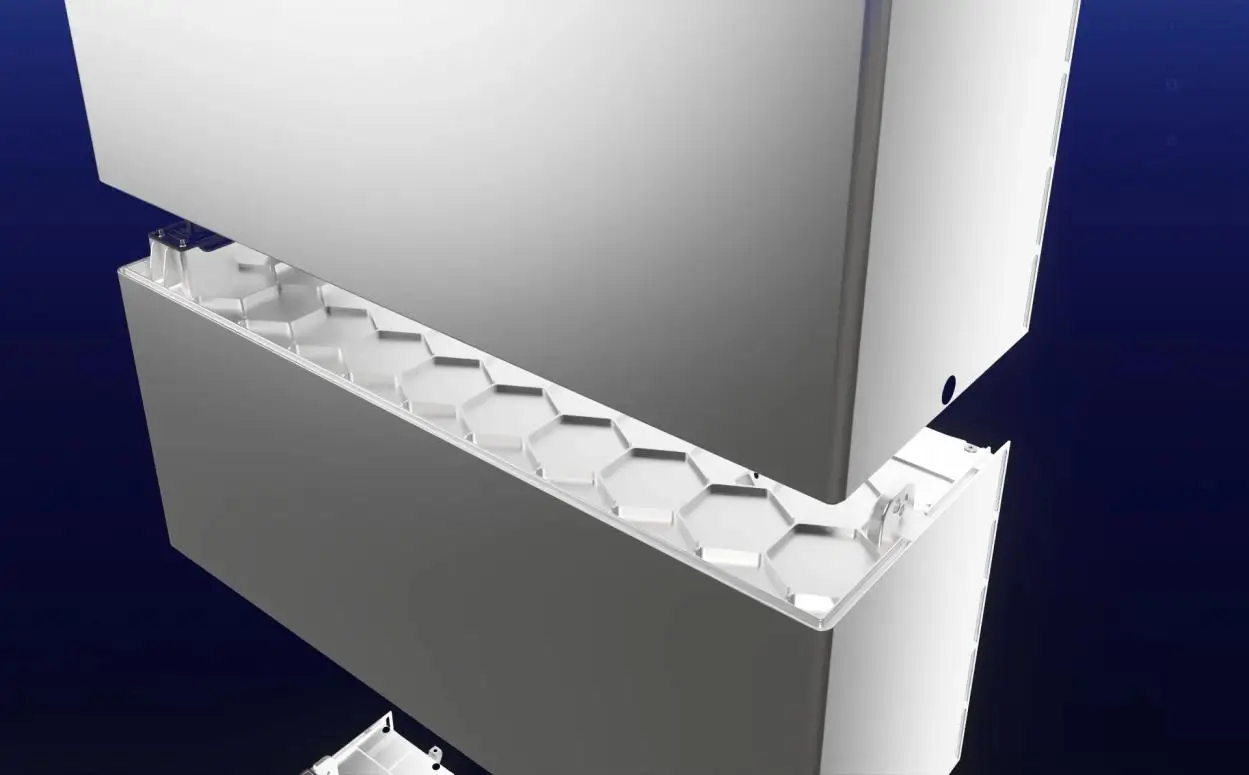

A cutaway render of the die-cast honeycomb rib across the top of a white battery module, with the module above it lifted clear to show the connector rail between the two — Add to it later
Your next module drops onto the one below it on a die-cast frame, and a blind-mate connector makes the electrical join as it lands.

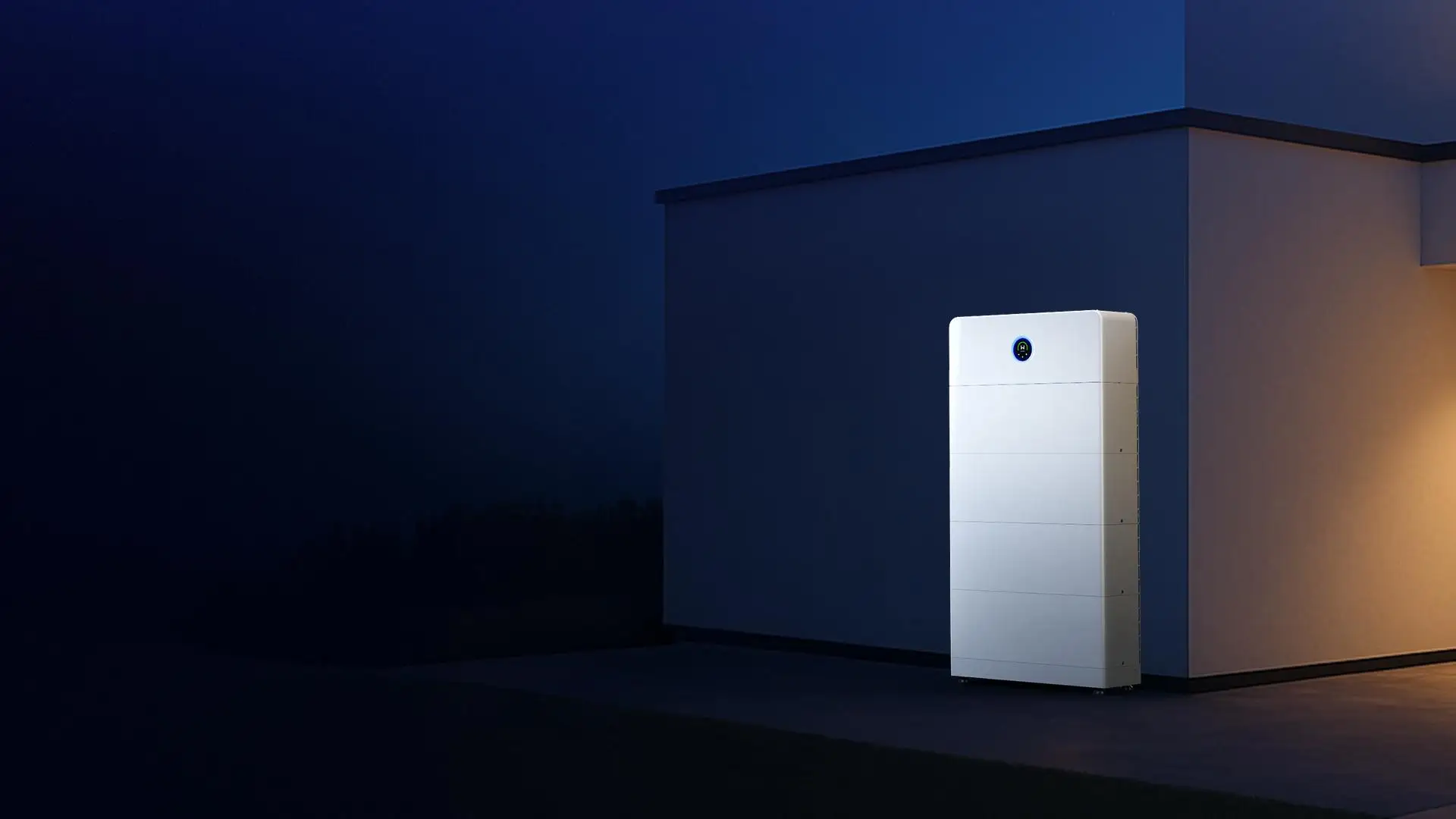

A white GoodWe battery, an inverter head over five battery modules, standing against the wall of a flat-roofed house at dusk with warm light falling on the wall beside it — Your home stays on
When the grid goes down, your home moves onto the battery in under 4 ms, through a 63 A bypass inside the unit.

Sized to your home

What your home draws overnight decides the size of your battery. That number moves as your home does. An EV in the driveway, a heat pump, one more person home during the day. The ESA can follow it.

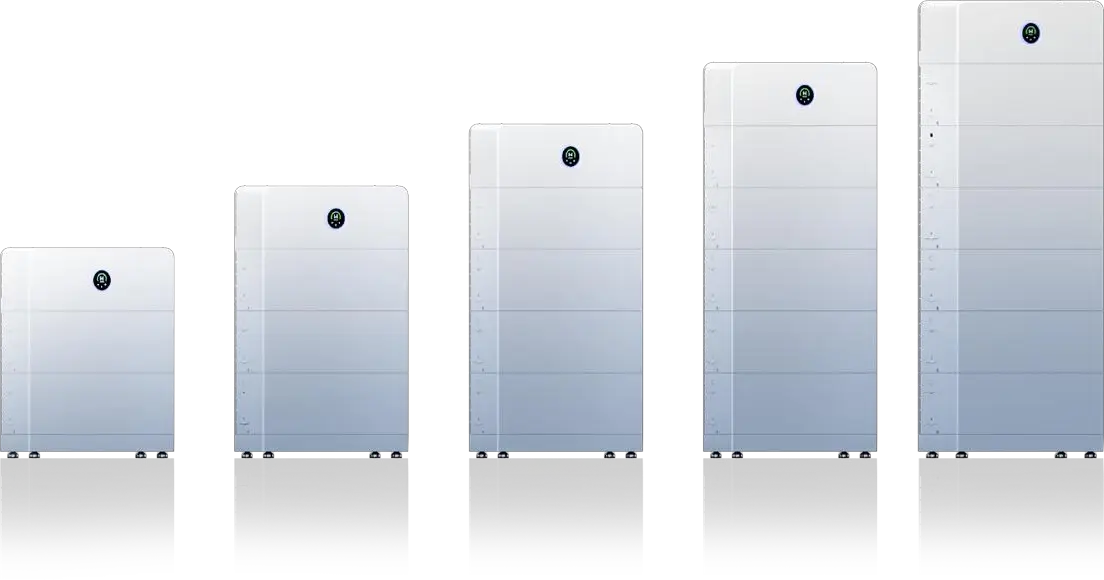

Five white GoodWe battery stacks side by side, each taller than the last: an inverter head over two battery modules at the left, rising to an inverter head over six modules at the right — 16 kWh24 kWh32 kWh40 kWh48 kWh

Sized in 8 kWh steps, from two modules to six.
Every battery module holds 8 kWh usable, and a column takes up to six of them. We size yours to what your home actually draws overnight.
Adding an EV or a heat pump? Add a module underneath.
A column takes more modules, up to 48 kWh. An electric car or a flat in the back yard is one more module below the ones already there. Same system, and nothing new beside it on your wall. Ask for a quote and we'll size it against what your home actually uses.

Get a Quote

Watch the ESA at work

GoodWe's own film of the ESA. Solar on the roof, the stack in the garage, the grid dropping out and the power staying on.

Solar battery rebate

See how the Cheaper Home Batteries discount applies to four GoodWe stacks. An accredited retailer takes any eligible discount off your purchase price on the day, so there is no separate claim afterwards. The discount per kWh reduces as your storage capacity increases, and the rate steps down every six months until 2030.

Battery configuration	Usable storage capacity	Estimated federal discount	Extra discount for the next unit
	16 kWh	$3,811
Most popular	24 kWh	$5,032	+$1,221
	32 kWh	$5,772	+$740
	40 kWh	$6,068	+$296

Indicative discounts only. Eligibility, installation date and STC value affect the final amount. Your quote will confirm the discount that applies.

Rates as at 29 July 2026 · Clean Energy Regulator · installs to 31 December 2026

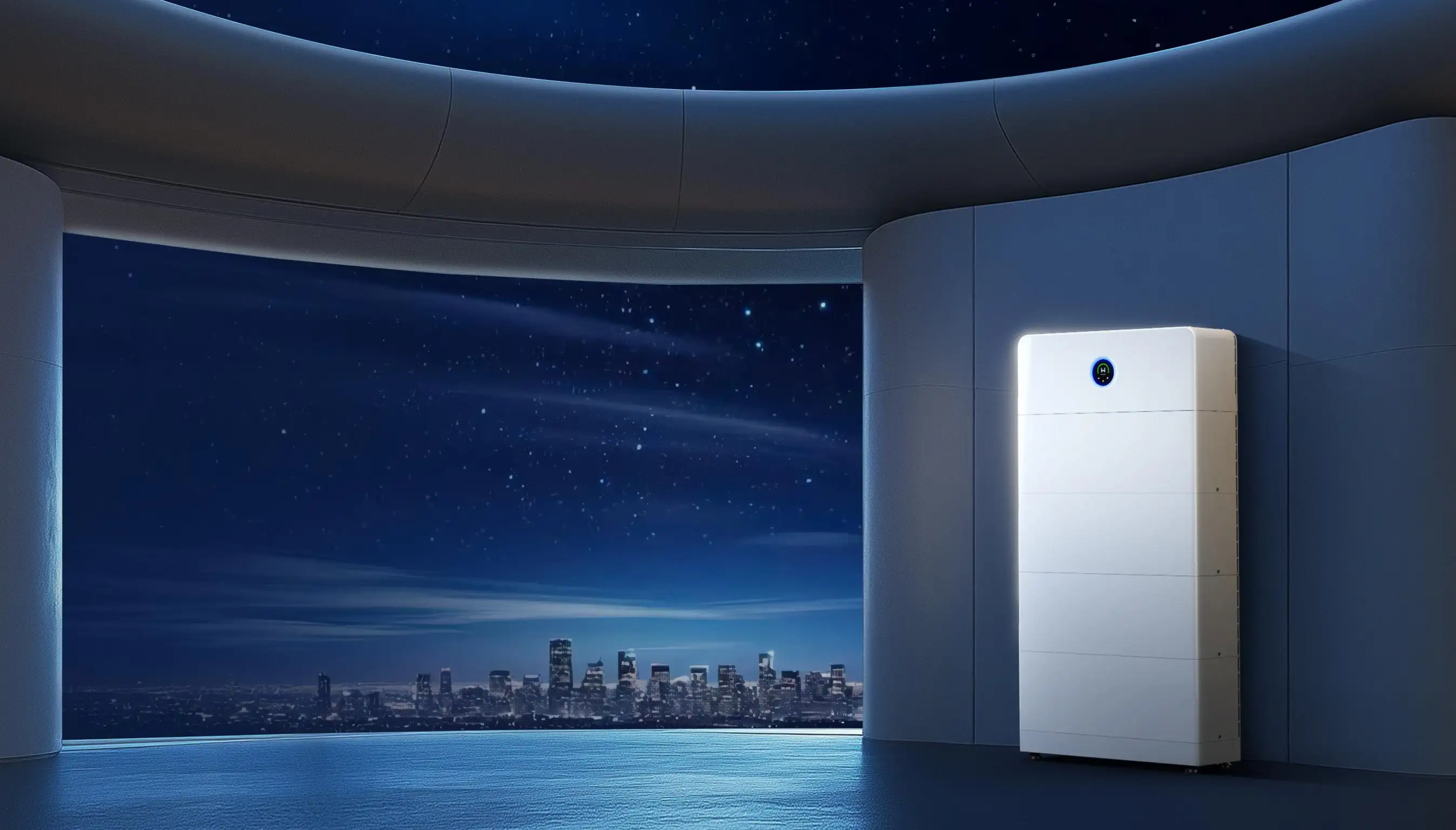

A white GoodWe battery, an inverter head over five battery modules, standing in a curved showroom interior at night with a lit city skyline through the window behind it

GoodWe ESA specs, single phase and three phase

The single phase GoodWe ESA Series is an all-in-one solar and battery system. The inverter sits in the top module, and 8.0 kWh usable battery modules go underneath it, up to 48 kWh in one column. Backup runs through a 63 A bypass inside the unit, so no gateway is mounted beside it on your wall, and the changeover measures under 4 ms. The three phase ESA is the same idea on a three phase supply. It runs 5 to 30 kVA, takes the same 8.0 kWh module, and accepts up to 60 kW of DC solar. All capacity figures on this page are usable capacity.

GoodWe ESA Series, single phase and three phase, side by side.
Property	Single phase	Three phase
Phase	Single phase	Three phase, 220/380 or 230/400 V
Cell chemistry	LFP (lithium iron phosphate)	LFP (lithium iron phosphate)
Usable capacity	8.0 kWh per module	8.0 kWh per module
Stacks to	48 kWh in one column	Six modules in one column
Continuous power	3.0 to 9.999 kVA, by model	5 to 30 kVA, by model
Solar inverter	Integrated	Integrated
Solar input	Up to 20 kW DC, 2 to 4 MPPTs	Up to 60 kW DC, 3 or 4 MPPTs
Backup	Whole home, 63 A bypass, no gateway	Whole home, internal 63 A bypass, 80 A from 25 kVA up
Backup transition	Under 4 ms	Under 4 ms
Round-trip efficiency	98.0% battery to AC	98.0% battery to AC
Cycle life	8,000 cycles or more	Not stated
Ingress rating	IP66, battery and power electronics	IP66, battery and power electronics
Operating range	−35°C to 60°C, derating above 40°C	−35 °C to 60 °C inverter, −20 °C to 55 °C battery
Noise	30 dB or less	35 to 45 dB inverter by model, 29 dB or less battery
Dimensions	800 × 326 × 270 mm per battery module	800 × 340 × 270 mm inverter, 800 × 326 × 270 mm per module
Weight	79 kg per battery module	34 to 38 kg inverter, 79 kg per module
Mounting	Wall or floor	Wall or floor
Monitoring	SolarGo and SEMS Portal	SolarGo, or SEMS+
Fire safety	Aerosol suppression in each module	Not stated

Single phase. GoodWe ESA Series single-phase (HV) Australian datasheet, GoodWe-Single page-20260616-AU-V2.1, read 20 August 2026
Three phase. GoodWe ESA Series three-phase (HV) datasheet, GoodWe-Single page-20251126-EN-D2.1, read 22 August 2026

A person in a harness standing on a tiled roof holding a solar panel above their head against a blue sky, with another person's hands reaching up from the gutter below

Installation backed by Sunstak

Sunstak master installers
Our master installers have completed at least 100 installations with 5/5 star reviews.
Clear scope and pricing
We'll confirm the scope, price and installation plan before work begins, so you know what's included and what to expect on the day. Any changes will be explained and agreed with you before we proceed.
Roof leak guarantee
If your roof leaks after our installation, we pay you $500 cash and fix it immediately.
Stock guarantee
If we can't supply the product specified in your design, we'll provide an upgrade at no extra cost.
